Hello Hydrogen.
Welcome to Work.

LAVO puts hydrogen to work as long-duration energy storage for critical infrastructure. A lithium-ion buffer responds instantly to changing loads, while solid-state hydrogen storage provides the energy reserve for extended operation.

Immediate response. Extended runtime. Built for continuity.

Explore HESS

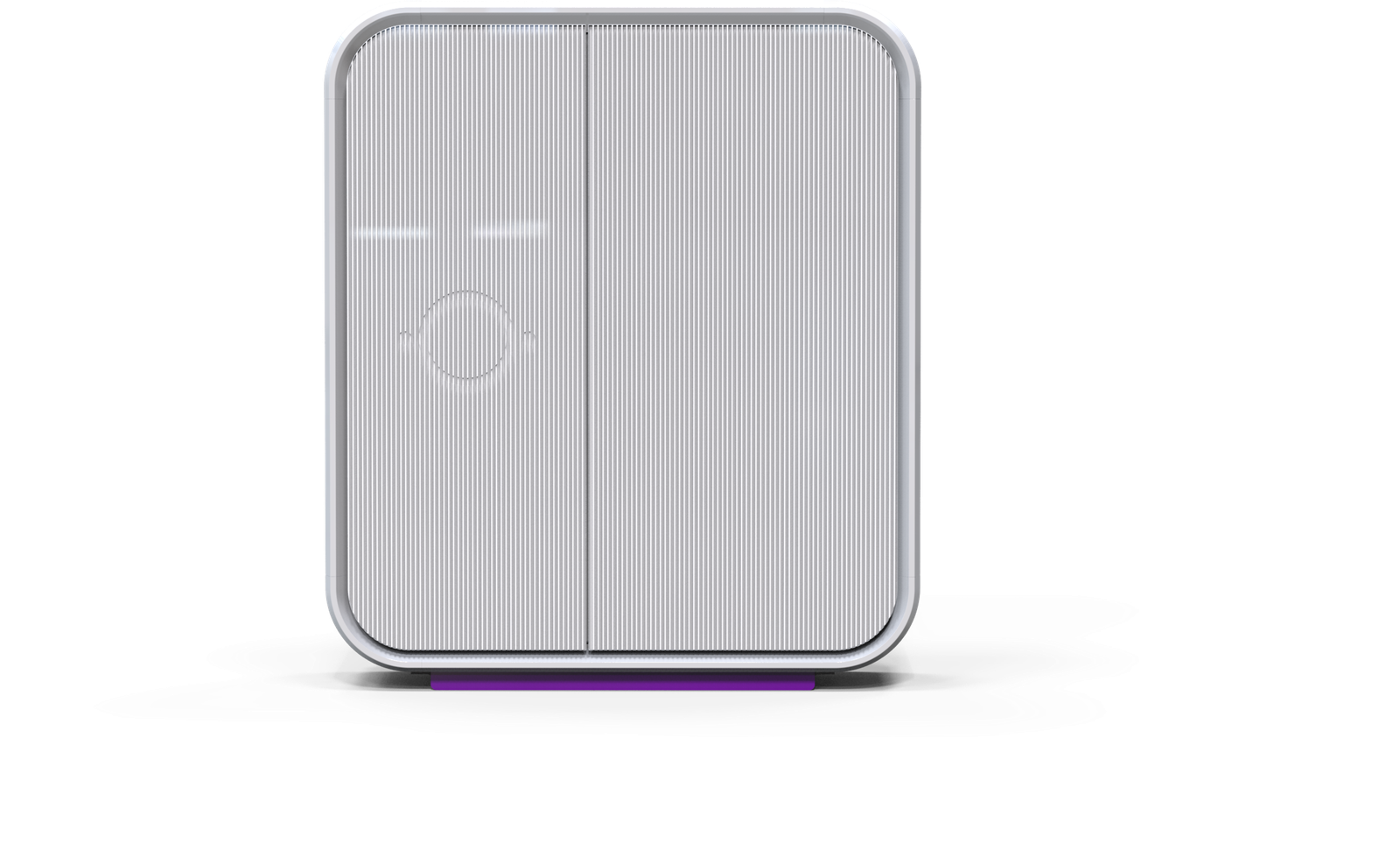

LAVO HESS commercial hydrogen energy storage cabinet shown from the front
C&I Hydrogen Energy Storage System (C&I HESS)

Commercial system

Hydrogen energy storage system built to scale

C&I HESS is LAVO’s commercial hydrogen energy storage system for businesses, infrastructure and utility-scale installations.

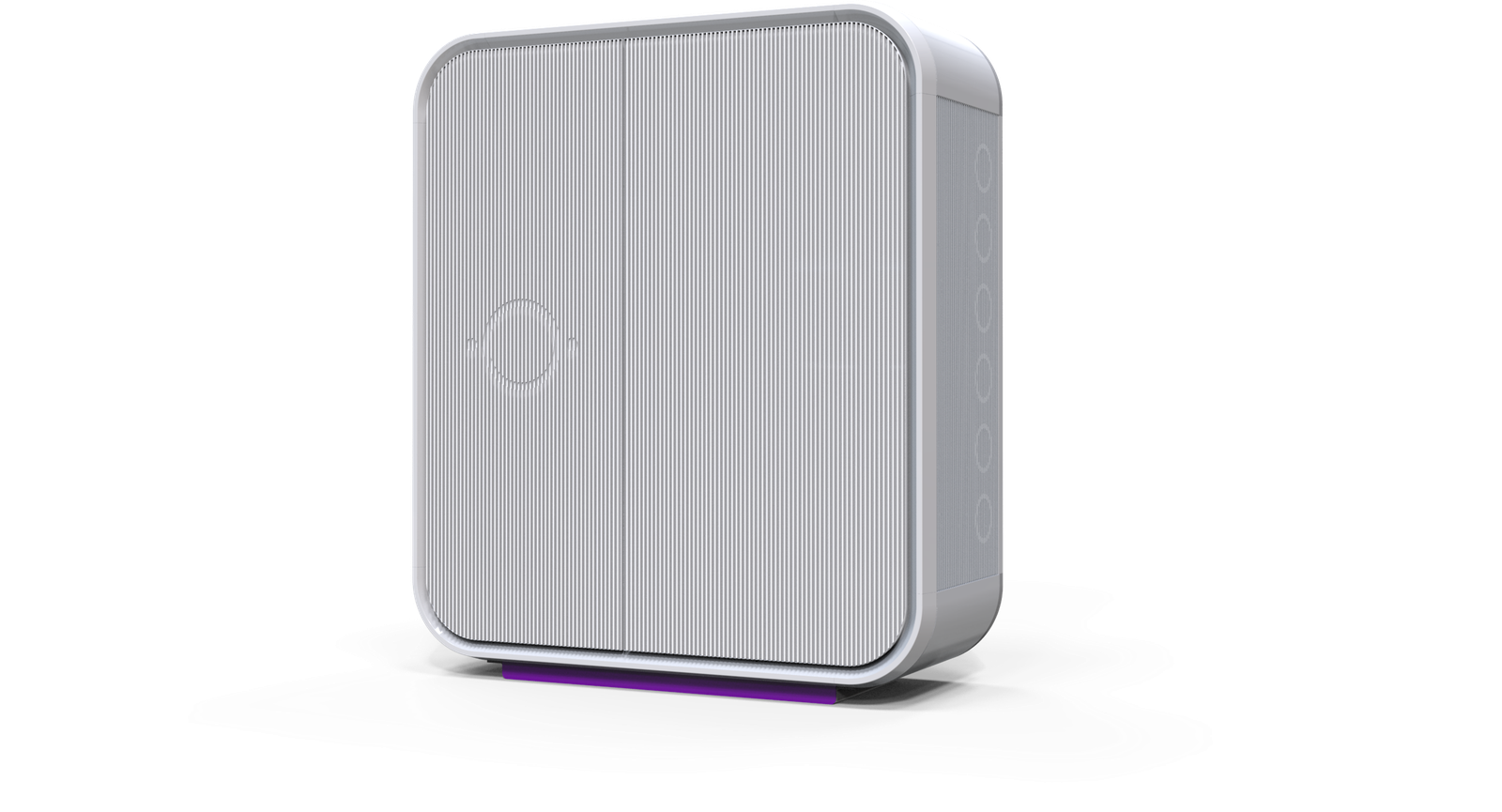

Angled product view of the LAVO HESS energy storage cabinet
C&I HESS Architectural form for commercial and infrastructure settings.

The integrated system brings together an electrolyser, water purifier, metal hydride storage vessels, fuel cell, hybrid inverter and a small lithium-ion buffer.

Lithium provides fast, short-duration response while hydrogen extends storage across days and weeks. The technologies are complementary parts of the same system.

For long-cycle resilience, HESS is designed as a safer, cleaner and more economical alternative to diesel generation at comparable system efficiency.

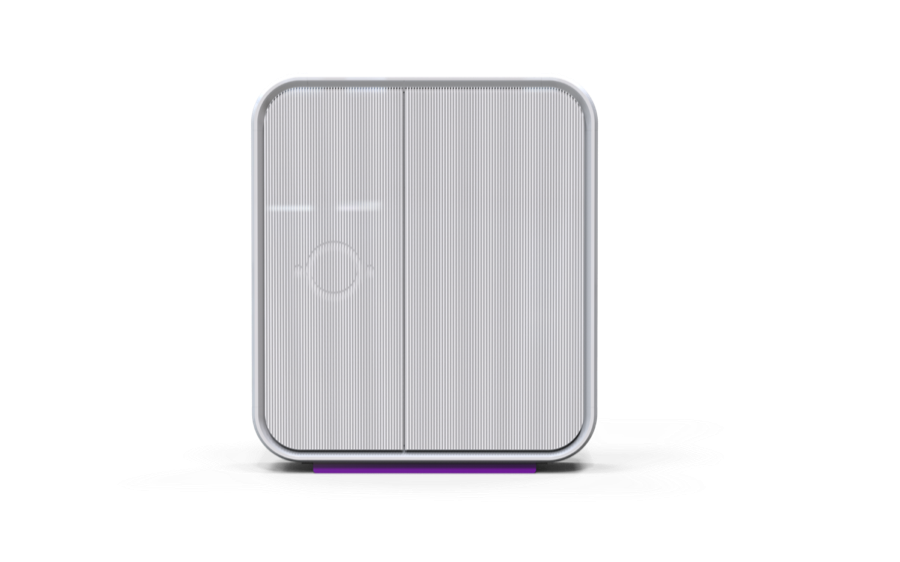

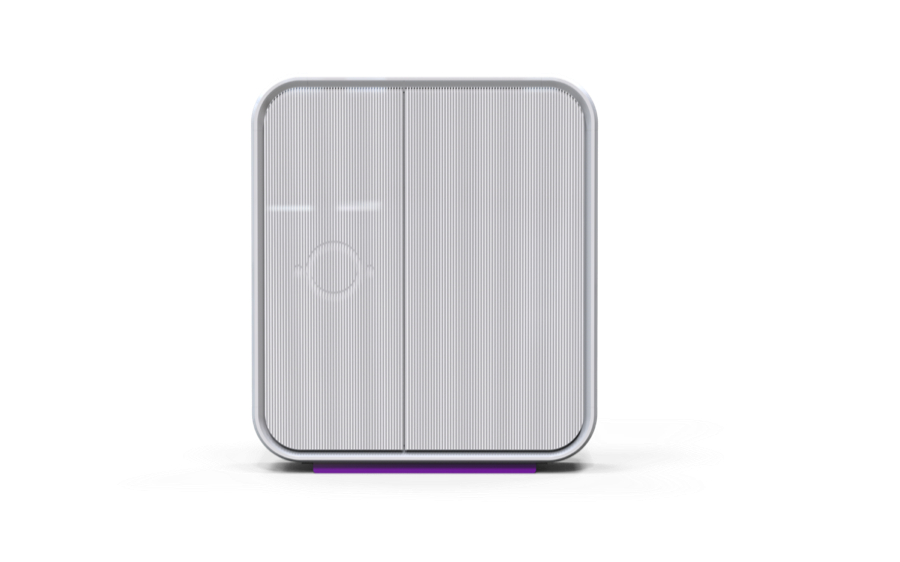

LAVO C&I HESS Power Module, a floor-standing cabinet with a ribbed aluminium front

Makes hydrogen, and turns it back into power

LAVO C&I HESS Power Module

A built-in PEM electrolyser produces hydrogen on site from your own renewable supply, and a high-efficiency fuel cell returns it as electricity and heat.

Dimensions (H×W×D)
1810 × 1550 × 573 mm
Weight, excluding vessels
800 kg
Rated power
5 kW
Max system pressure
10 bar-g / 30 bar-g
Electrolyser
PEM/AEM, 2.0 Nm³/h
Electrolyser consumption
4.75 kWh per Nm³ H₂
Lithium-ion buffer
Min 5 kWh at 51.2 V DC
Operating temperature
0 °C to 40 °C
Noise
≤ 75 dBA at 1 m
Ingress protection
IP54 (IEC 60529)
Warranty
1 year

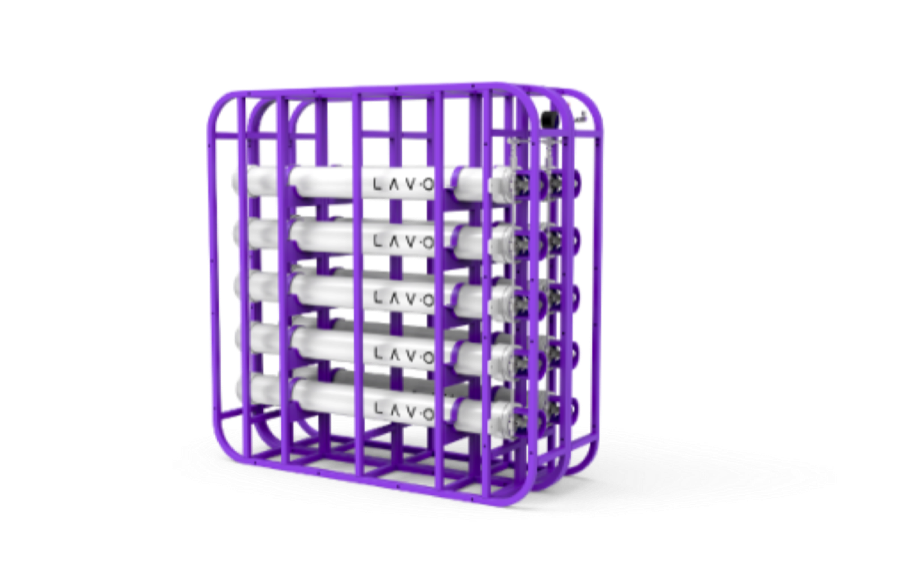

LAVO Hydrogen Energy Module, five white hydride vessels in a purple open frame

Holds the hydrogen, in solid state

LAVO Hydrogen Energy Module

Five metal hydride vessels store hydrogen at low pressure without a compressor, and release it on demand. It’s scalable and could adapt to a thermal management system when needed.

Dimensions (L×W×H)
1400 × 250 × 1290 mm
Footprint
0.4 m²
Hydride vessels
5 per module, DN100
Installed weight
300 kg
Hydrogen storage
1.69 kg
Energy density
56.3 kWh
Max system pressure
35 bar
Supply pressure
Variable, 2 to 35 bar
Cycle life
10,000 cycles
Storage lifetime
10 years
Operating temperature
−10 °C to 40 °C with thermal management
Ingress protection
IP54 (open frame)

Integrated architecture

One system, working across time

HESS coordinates generation, immediate use, storage and power delivery inside one integrated architecture.

  1. Generate

    Make hydrogen

    Surplus renewable electricity is used to prepare water and produce hydrogen.

    • Water purifier
    • Electrolyser

  2. Use

    Respond immediately

    A lithium-ion buffer supports fast, short-duration demand, while LAVO HESS can also integrate with existing battery storage where suitable — adding long-duration hydrogen storage to your current energy infrastructure.

    • Lithium-ion buffer

  3. Store

    Hold energy longer

    Hydrogen is retained in metal hydride vessels for energy resilience measured in days and weeks.

    • Metal hydride hydrogen storage vessels

  4. Power

    Return useful power

    Stored hydrogen is converted back to electricity and conditioned for the connected load.

    • Fuel cell
    • Hybrid inverter

Lithium and hydrogen are complementary: lithium handles rapid response, while hydrogen carries energy across longer periods.

Designed for resilience

A cleaner path beyond diesel

HESS is intended for sites that need dependable energy beyond short battery-duration windows, including businesses, infrastructure and utility-scale installations.

At comparable system efficiency, the system is designed to provide a safer, cleaner and more economical long-cycle alternative to diesel generation.

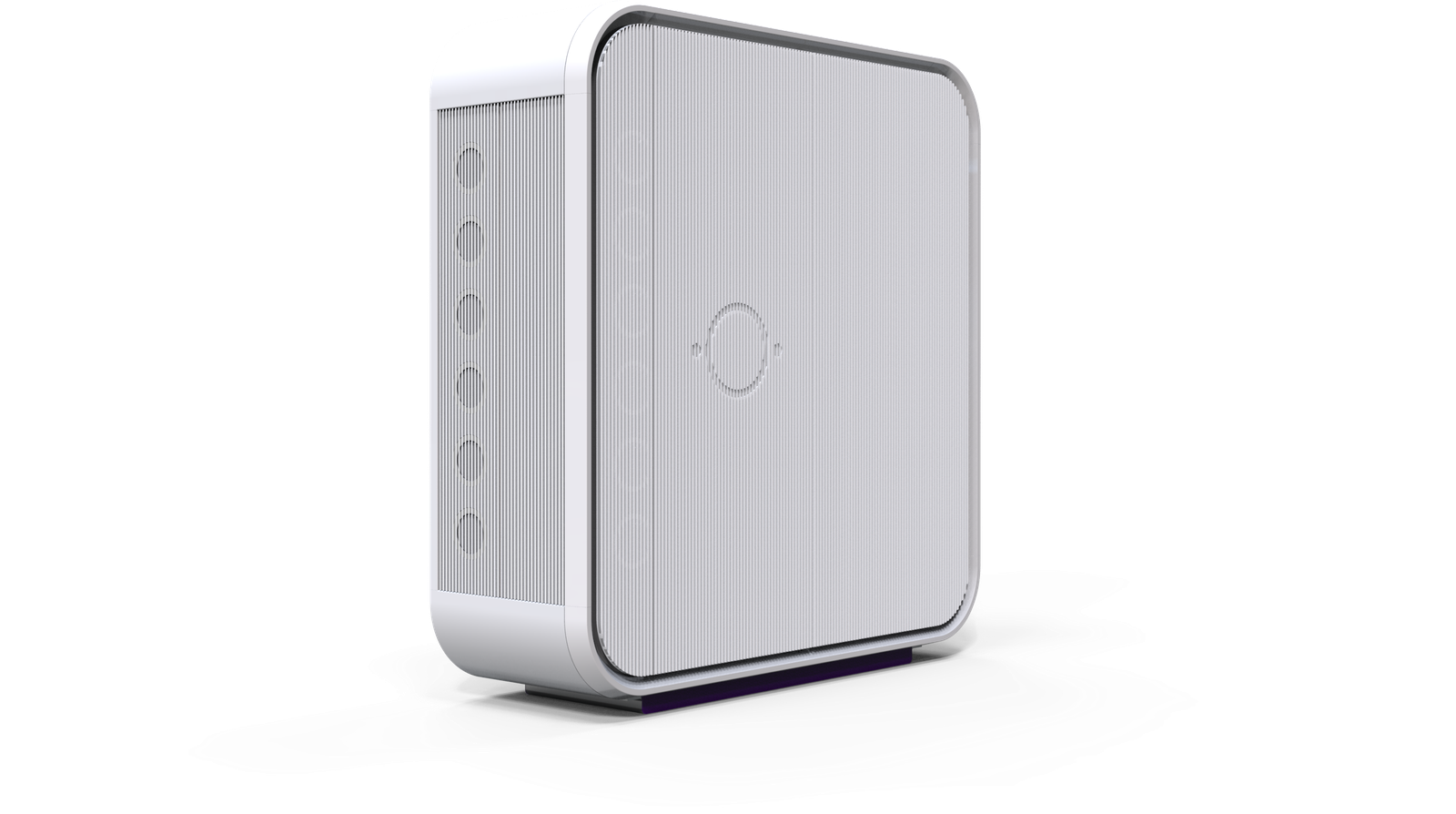

Detailed product rendering of the LAVO HESS cabinet and enclosure
An integrated enclosure designed for deployment as infrastructure.

Residential origins

Where the LAVO story began

The residential LAVO System remains part of LAVO’s story and a future energy-storage scenario for homes.

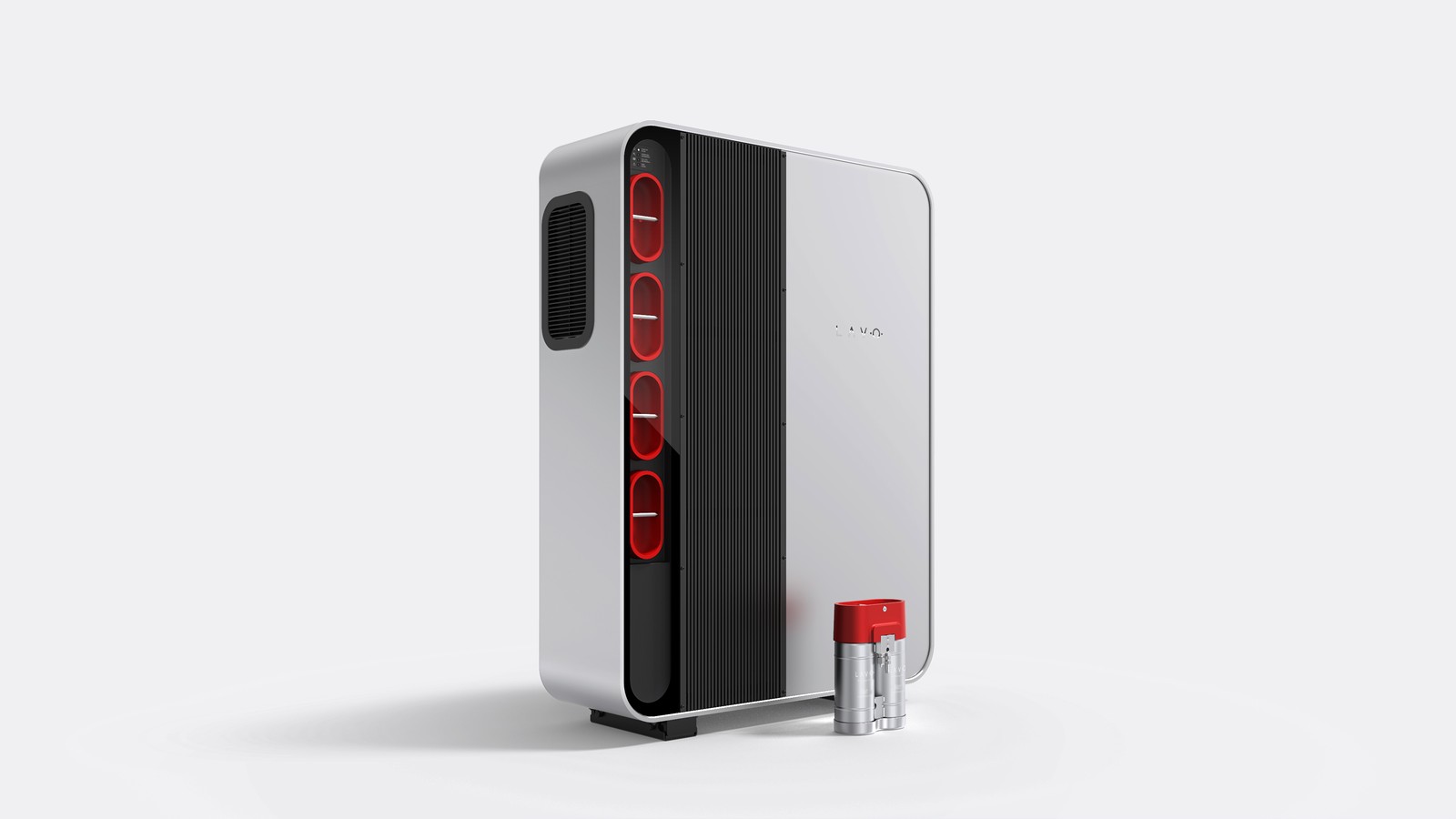

LAVO System

It pairs a lithium-ion buffer with hydrogen storage to support both immediate household demand and longer periods without solar generation.

LAVO Resi HESS – 30 bar

LAVO HESS – 10 bar

Max system pressure
LAVO Resi HESS – 30 bar 30 bar-g
LAVO HESS – 10 bar 10 bar-g
Dimensions (H×W×D)
LAVO Resi HESS – 30 bar 1785 × 1333 × 563 mm
LAVO HESS – 10 bar 1810 × 1333 × 573 mm
Weight, including vessels
LAVO Resi HESS – 30 bar 600 kg
LAVO HESS – 10 bar 800 kg
Max vessel pressure
LAVO Resi HESS – 30 bar 30 bar-g
LAVO HESS – 10 bar 10 bar-g
Electrolyser
LAVO Resi HESS – 30 bar AEM, 0.5 Nm³/h
LAVO HESS – 10 bar PEM, 0.5 Nm³/h
Rated power
LAVO Resi HESS – 30 bar 3 kWe
LAVO HESS – 10 bar 5 kWe

Identical on both

Hydride vessels
4, at 21 kg each
Vessel size
52 × 24 × 37 cm, 4.6 L each
Storage capacity
7000 NL hydrogen
Stored gas
Hydrogen, 99.999% purity
Lithium-ion buffer
5.12 kWh, 100 Ah at 51.2 V DC
Operating temperature
2 °C to 50 °C
Noise
≤ 75 dBA at 1 m
Ingress protection
IP54 (IEC 60529)
Warranty
1 year

LAVO Ecosystem

Where else the hydrogen could go

Alongside the energy systems, LAVO has explored what solid-state hydrogen might power once it is safe to hold and simple to carry. These are design concepts. Neither is manufactured, and neither is for sale.

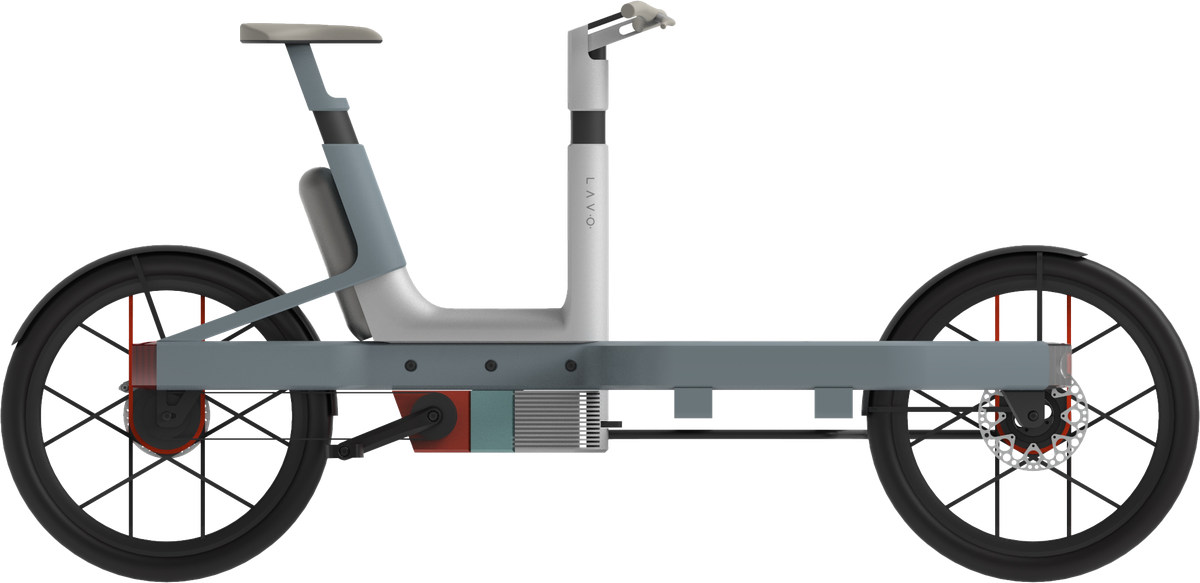

  • Design concept for a LAVO hydrogen-powered bicycle

    LAVO Bike

    A hydrogen-powered bicycle concept.

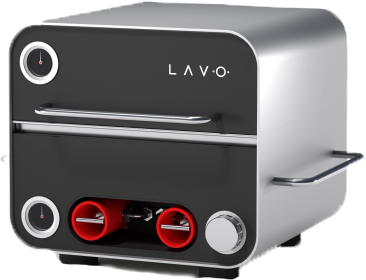

  • Design concept for a LAVO hydrogen-fuelled outdoor cooker

    LAVO BBQ

    A hydrogen-fuelled outdoor cooker concept.
